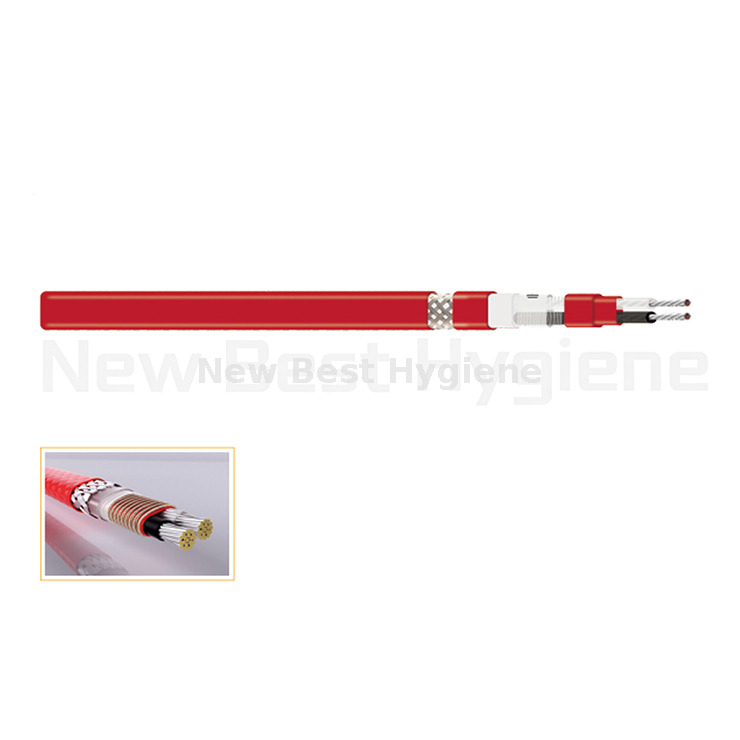

FCW Parallel Constant-Power Electric Trace Heating Tape

Rated Voltage:
Maximum exposure temperature:
Minimum installation temperature:
Explosion-proof label:
Minimum bending radius:
Dimensions:

110-120V (FCW 1) /220-240V (FCW 2)
+205°C (401°F)
-60℃(-76°F)
Ex eb IIC Gb , Ex tb IIIC Db
Not less than 5 times the product's outer diameter
9mm(W)x6mm(T)

Ref No.

Output Power (W/m)

Voltage (V)

Maximum Operating Temperature (℃)

Maximum Circuit Length (m)

Maximum Exposure Temperature (℃)

FCW-10

FCW-20

FCW-30

FCW-40

10

20

30

40

230

230

230

230

150

120

90

65

210

180

150

140

205

205

205

205
