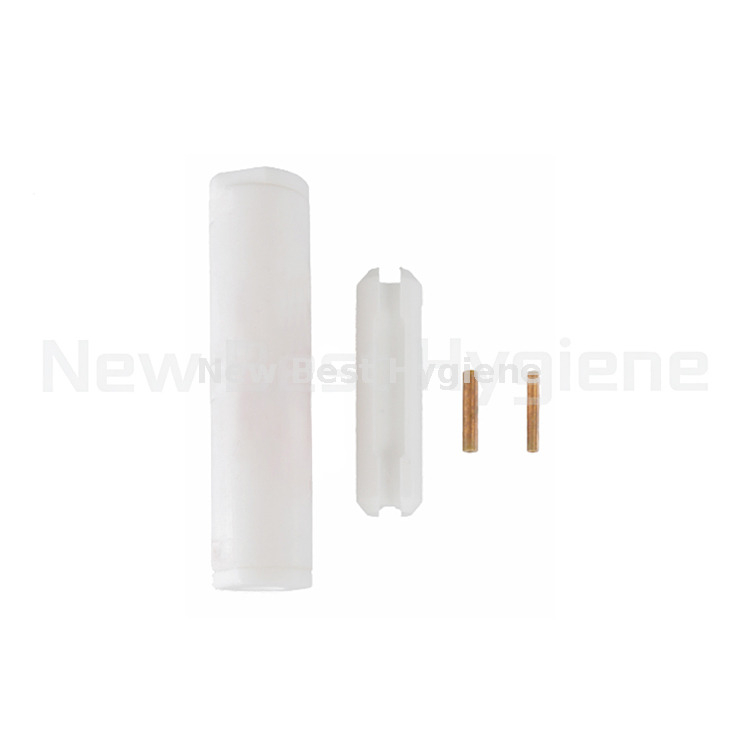

PET-HD
Nbhygiene
The PET-HD series high-current connectors are available in two specifications:
PET-HD-54A: For cables up to 2.9Ω/km (MAX 6mm²), rated at 54A
PET-HD-129A: For cables up to 0.8Ω/km (MAX 25mm²), rated at 129A
Rated Voltage:750V
Operating Temperature:-30°C ~ 200°C
Protection Rating:IP65
Ref No. | Description |
PET-HD-54A/E | Used for cold-to-hot connection of 1ESF heat tracing cables with a load current not exceeding 54A |
PET-HD-129A/E | Used for cold-to-hot connection of 1ESF heat tracing cables with a load current not exceeding 129A |
