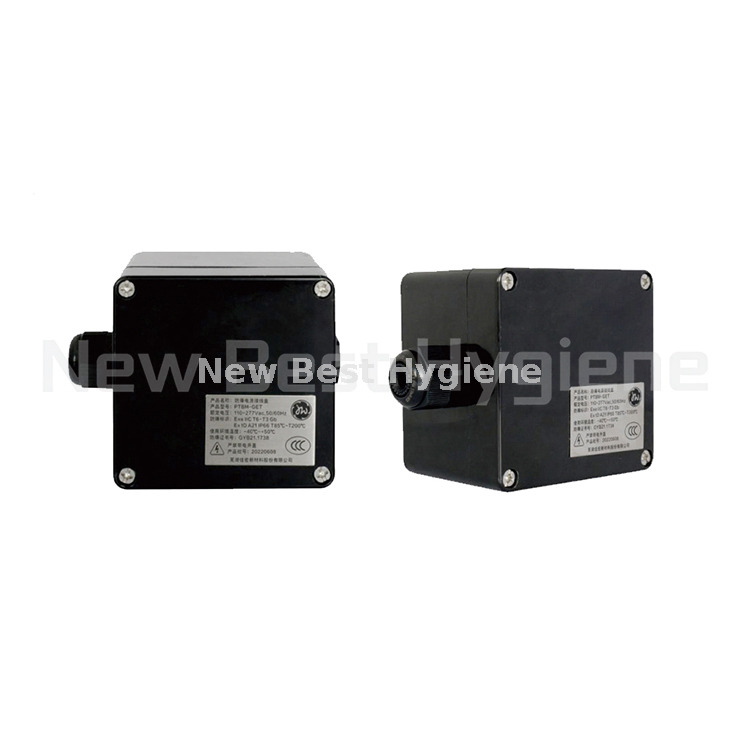

PTBM-GET-120 Explosion-proof junction box

Ref No.:

PTBM-GET-120

Composition:

1 junction box with a terminal

Applicable Heating Cable:

HTLe 、 HTR 、 HTP 、 HTS 、HTU⁺ 、 ESF、FCW、MSF

Protection level:

IP 66

Ambient temperature range:

- 60℃~+60℃

Minimum installation temperature:

- 60℃

Explosion-proof mark:

Ex eb ⅡC Gb,Ex tb ⅢC Db

Rated voltage:

110~277Vac

380Vac/660Vac 50/60HZ

Shell, cover, and bracket:

BMC unsaturated polyester

Lid screws:

Stainless steel

Ref No.

Product Name

Product Description

Applicable line type

PTBM-GET-120A

PTBM Explosion-Proof Junction Box

Polyester housing: 120mm (width) × 122mm (height) × 90mm (depth)
1-PTBM junction box 120 specification housing, two M25×1.5 holes at the bottom
One M25×1.5 hole on each of the left and right sides
1-M25×1.5 explosion-proof cable gland (PA66 material)
2-M25×1.5 explosion-proof blank plugs (PA66 material)
1-M25×1.5 explosion-proof cable gland for outgoing line (flat opening, PA66 material)
4-UK6N or same specification terminals
2-USLKG6 or same specification grounding terminals

HTR、HTP、HTS

HTU⁺ 、FCW

PTBM-GET-120B

PTBM Explosion-Proof Junction Box

Polyester Enclosure: 120mm (W) x 122mm (H) x 90mm (D)
1-PTBM junction box size 120 enclosure, bottom with 2-M25×1.5 holes
Right side with 1-M25×1.5 hole
1-M25x1.5 cable entry explosion-proof gland (round, PA66 material)
2-UK6N or same specification terminals
2-USLKG6 or same specification grounding terminals

MSF-1

PTBM-GET-120C

PTBM Explosion-Proof Junction Box

Polyester Enclosure: 120mm (W) x 122mm (H) x 90mm (D)
1-PTBM junction box with 120 specification enclosure, 1-M25×1.5 hole on the bottom
1-M25×1.5 hole on the right side
1-M25×1.5 cable entry explosion-proof gland (round, PA66 material)
2-UK6N or terminals of the same specification
1-USLKG6 or grounding terminal of the same specification

MSF-2

PTBM-GET-120D

PTBM Explosion-Proof Junction Box

Polyester housing: 120mm (W) x 122mm (H) x 90mm (D)
1-PTBM junction box with 120 specification housing, bottom with 2-M20×1.5 holes
Right side with 1-M25×1.5 hole
1-M25×1.5 cable entry explosion-proof gland (round, PA66 material)
2-M20×1.5 cable exit explosion-proof glands (round, PA66 material)
2-UK6N or same specification terminal blocks
2-USLKG6 or same specification grounding terminals

1ESF. 2ESF

PET-JBM120A

Install backplate (galvanized iron)

Galvanized iron material

PTBM-GET-120

PET-JBM120B

Install backplate
(304 stainless steel)

304 stainless steel material

PTBM-GET-120
