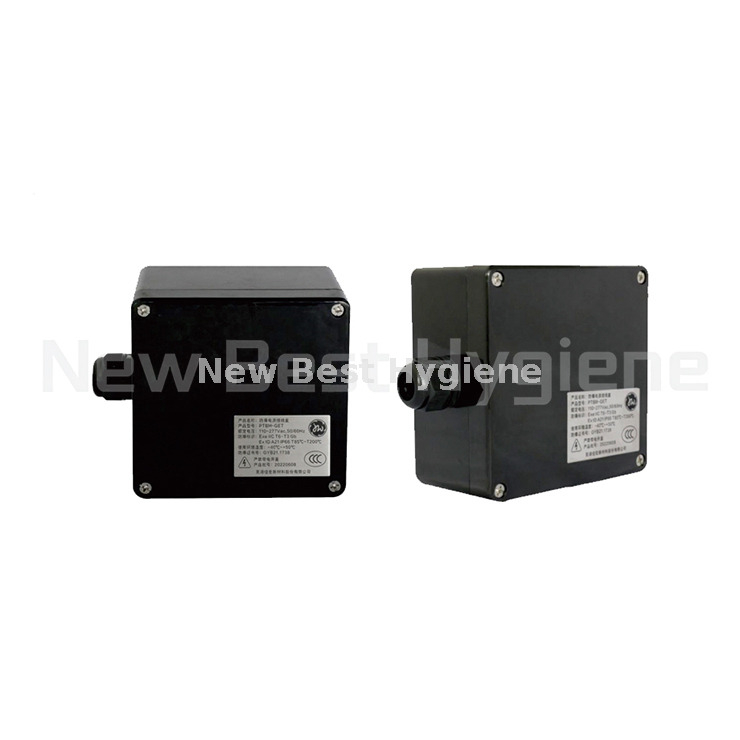

PTBM-GET-160 Explosion-proof junction box

Ref No.:

PTBM-GET-160

Composition:

1 junction box with a terminal

Applicable Heating Cable:

ESF

Protection level:

IP 66

Ambient temperature range:

- 60℃~+60℃

Minimum installation temperature:

- 60℃

Explosion-proof mark:

Ex eb ⅡC Gb,Ex tb ⅢC Db

Rated voltage:

110~277Vac

380Vac/660Vac 50/60HZ

Shell, cover, and bracket:

BMC unsaturated polyester

Lid screws:

stainless steel

Ref No.

Product Name

Product Description

Applicable line type

PTBM-GET-160A

PTBM Explosion-Proof Junction Box

Polyester Enclosure: 160mm (Width) × 160mm (Height) × 90mm (Depth)
1-PTBM junction box 160 specification enclosure, with 3 M20×1.5 holes at the bottom
1 M25×1.5 hole on the right side
1 M25×1.5 cable entry explosion-proof gland (round, PA66 material)
3 M20×1.5 cable exit explosion-proof glands (round, PA66 material)
3 UK6N or equivalent specification terminals
2 USLKG6 or equivalent specification grounding terminals

1ESF、3ESF

PTBM-GET-160B

PTBM Explosion-Proof Junction Box

Polyester Enclosure: 160mm (W) × 160mm (H) × 90mm (D)
1- PTBM junction box 160 specification enclosure, bottom with 3-M20×1.5 holes
3-M20×1.5 cable explosion-proof glands (round, PA66 material)
3- UK6N or equivalent specification terminal blocks
2- USLKG6 or equivalent specification grounding terminals

1ESF、3ESF

PTBM-GET-160C

PTBM Explosion-Proof Junction Box

Polyester Enclosure: 160mm (W) × 160mm (H) × 90mm (D)
1- PTBM junction box 160 specification enclosure, bottom with 6-M20×1.5 holes
6-M20×1.5 cable explosion-proof glands (round, PA66 material)
3- UK6N or equivalent terminal blocks
2- USLKG6 or equivalent grounding terminals

1ESF、3ESF

PTBM-GET-160D

PTBM Explosion-Proof Junction Box

Polyester Enclosure: 160mm (Width) × 160mm (Height) × 90mm (Depth)
1-PTBM junction box 160 specification enclosure, with 3 M20×1.5 holes at the bottom
1 M32×1.5 hole on the right side
1 M32×1.5 cable entry explosion-proof gland (round, PA66 material)
3 M20×1.5 cable exit explosion-proof glands (round, PA66 material)
3 UK10N or terminals of the same specification
2 USLKG10 or grounding terminals of the same specification

1ESF、3ESF

PTBM-GET-160E

PTBM Explosion-Proof Junction Box

Polyester housing: 160mm (W) x 160mm (H) x 90mm (D)
1 - PTBM junction box 160 specification housing, with 3-M20×1.5 holes at the bottom
3 - M20x1.5 explosion-proof cable glands (round, PA66 material)
3 - UK10N or same specification terminal blocks
2 - USLKG10 or same specification grounding terminals

1ESF、3ESF

PTBM-GET-160F

PTBM Explosion-Proof Junction Box

Polyester housing: 160mm (W) × 160mm (H) × 90mm (D)
1- PTBM junction box 160 specification housing, bottom with 6-M20×1.5 holes
6-M20×1.5 explosion-proof cable glands (round, PA66 material)
3- UK10N or equivalent terminal blocks
2- USLKG10 or equivalent grounding terminals

1ESF、3ESF

PTBM-GET-160G

PTBM Explosion-Proof Junction Box

Polyester Enclosure: 160mm (Width) × 160mm (Height) × 90mm (Depth)
1-PTBM junction box 160 specification enclosure, with 3-M25×1.5 holes on the bottom
1-M32×1.5 hole on the right side
1-M32x1.5 cable entry explosion-proof gland (round, PA66 material)
3-M25×1.5 cable exit explosion-proof glands (round, PA66 material)
6-UK6N or equivalent terminals
2-USLKG6 or equivalent grounding terminals

Power Cable Distribution

PET-JBM160A

Install backplate (galvanized iron)

Galvanized iron material

PTBM-GET-160

PET-JBM160B

Install backplate
(304 stainless steel)

Stainless steel material

PTBM-GET-160
