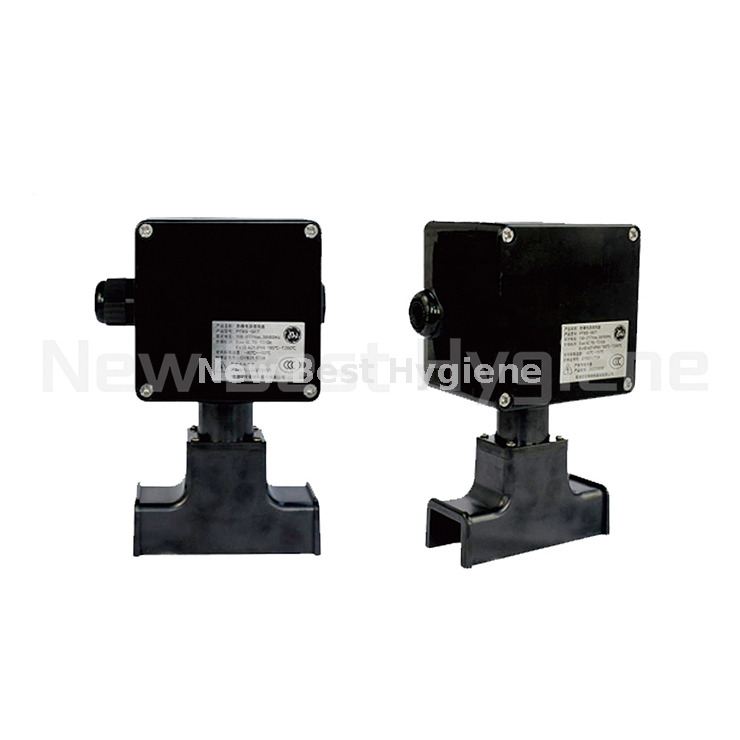

PTBS-GET-120 Explosion-proof junction box

Ref No.:

PTBS-GET-120

Composition:

1 junction box with terminal, 1 three-hole support base

Dimensions:

Main body dimensions 122*120*90 (unit:mm), excluding the support base dimensions

Applicable Heating Cable:

HTLe 、 HTR 、 HTP 、 HTS 、 FCW

Protection level:

IP66

Ambient temperature range:

-60℃~60℃

Minimum installation temperature:

-60℃

Explosion-proof mark:

Ex eb ⅡC Gb,Ex tb ⅢC Db

Rated voltage:

110~277Vac, 380Vac/660Vac, 50/60Hz

Shell, cover, and bracket:

BMC unsaturated polyester

Lid screws:

stainless steel

Ref No.

Product Name

Product Description

Applicable line type

PTBS-GET-120

(4mm²)

PTBS Explosion-Proof Junction Box

Polyester enclosure: 120mm (W) x 122mm (H) x 90mm (D)

1- PTBS junction box 120 specification enclosure, with 1 M40×1.5 hole at the bottom

1 M25×1.5 hole on each side

1- PTBS-GET-S1 bracket

1 M25×1.5 explosion-proof cable gland (round, PA66 material)

1 M25×1.5 explosion-proof blind plug (PA66 material)

4- UK5N or terminals of the same specification

2- USLKG5 or grounding terminals of the same specification

HTLe, HTR. HTP

HTS. FCW

PTBS-GET-120

(6mm²)

PTBS Explosion-Proof Junction Box

Polyester enclosure: 120mm (W) x 122mm (H) x 90mm (D)

1- PTBS junction box 120 specification enclosure, with 1 M40×1.5 hole at the bottom

1 M25×1.5 hole on each side

1- PTBS-GET-S1 bracket

1 M25×1.5 explosion-proof cable gland (round, PA66 material)

1 M25×1.5 explosion-proof blind plug (PA66 material)
4- UK5N or terminals of the same specification
2- USLKG5 or grounding terminals of the same specification

HTLe, HTR. HTP

HTS. FCW

PTBS-GET-2

PTBS Explosion-Proof Junction Box

Polyester Enclosure: 120mm (W) × 122mm (H) × 90mm (D)

1- PTBS junction box, 120 size enclosure, 1-M40×1.5 hole at the bottom

1-M25×1.5 hole on each of the left and right sides

1- PTBS-GET-S1 bracket

1-M25×1.5 explosion-proof blind plug (PA66 material)

4- UK6N or terminals of the same specification

2- USLKG6 or grounding terminals of the same specification

1- wiring kit (including 2 cable glands and 2 yellow-green heat shrink tubes)

HTLe, HTR. HTP

HTS. FCW

PTBS-GET-120H

(4mm²)

PTBS Explosion-Proof Junction Box

Polyester housing: 120mm (W) × 122mm (H) × 90mm (D)

1-PTBS junction box, 120 specification housing, bottom with one M40×1.5 hole

Each of the left and right sides with one M25×1.5 hole

1-PTBS-GET-S2 bracket

1-M25x1.5 incoming explosion-proof gland (round opening, PA66 material)

1-M25×1.5 explosion-proof blind plug (PA66 material)

4-UK5N or equivalent terminal blocks

2-USLKG5 or equivalent grounding terminals

HTLe, HTR. HTP

HTS. FCW

PTBS-GET-120H

(6mm²)

PTBS Explosion-Proof Junction Box

Polyester housing: 120mm (W) × 122mm (H) × 90mm (D)

1-PTBS junction box, 120 specification housing, bottom with one M40×1.5 hole

Each of the left and right sides with one M25×1.5 hole

1-PTBS-GET-S2 bracket

1-M25x1.5 incoming explosion-proof gland (round opening, PA66 material)

1-M25×1.5 explosion-proof blind plug (PA66 material)

4-UK5N or equivalent terminal blocks

2-USLKG5 or equivalent grounding terminals

HTLe, HTR. HTP

HTS. FCW

PTBS-GET-S1

PTBS Explosion-Proof Junction Box
Support Base

PTBS-GET-S2

PTBS Explosion-Proof Junction Box
Support Base
