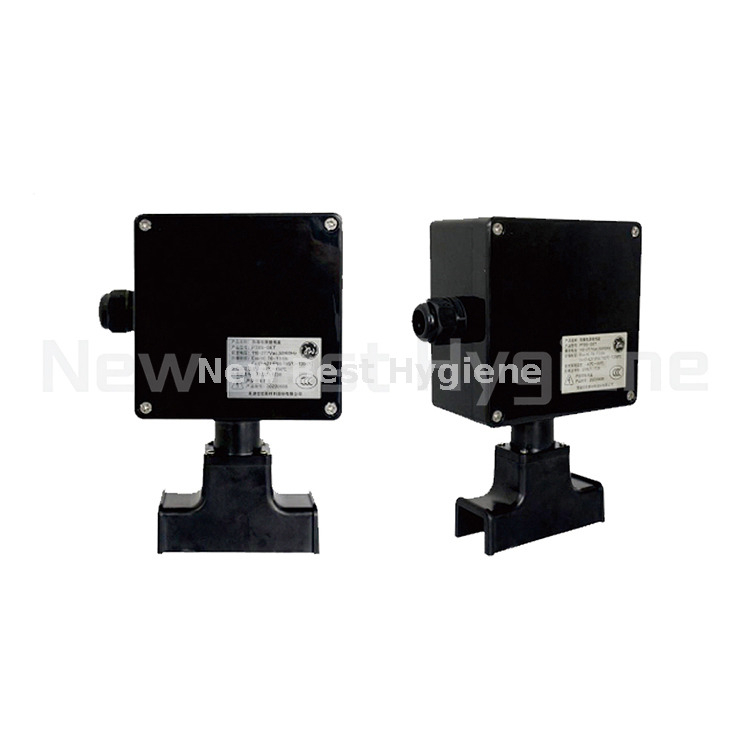

PTBS-GET-160 Explosion-proof junction box

Ref No.:

PTBS-GET-160

Composition:

1 junction box with terminal, 1 support base

Dimensions:

The main body dimensions are 160*160*90 (unit mm), excluding the support base dimensions

Applicable Heating Cable:

 LHTR 、 15HTR 、 HTU⁺

Protection level:

IP66

Ambient temperature range:

- 60℃~+60℃

Minimum installation temperature:

- 60℃

Explosion-proof mark:

Ex eb ⅡC Gb,Ex tb ⅢC Db

Rated voltage:

110~277Vac 380Vac/660Vac 50/60HZ

Shell, cover, and bracket:

BMC unsaturated polyester

Lid screws:

Stainless steel

Ref No.

Product Name

Product Description

Applicable line type

PTBS-GET-160SP

PTBS Explosion-Proof Junction Box

Polyester Enclosure: 160mm (W) x 160mm (H) x 90mm (D)

1- PTBS Junction Box 160 Size Enclosure, 1 M40×1.5 Hole at the Bottom

1 M25×1.5 Hole on Each Left and Right Side

1- PTBS-GET-S3 Bracket

1 M25×1.5 Explosion-proof Cable Gland (Round, PA66 Material)

1 M25×1.5 Explosion-proof Blind Plug (PA66 Material)

4 UK6N or Equivalent Terminal Blocks

2 USLKG6 or Equivalent Ground Terminals

HTU⁺

PTBS-GET-160SS

PTBS Explosion-Proof Junction Box

Polyester housing: 160mm (W) × 160mm (H) × 90mm (D)

1-PTBS junction box 160 specification housing, bottom with 1-M40×1.5 hole

1-PTBS-GET-S3 bracket

2-UK6N or terminals of the same specification

1-USLKG6 or grounding terminal of the same specification

HTU⁺

PTBS-GET-160ST

PTBS Explosion-Proof Junction Box

Polyester housing: 160mm (W) x 160mm (H) x 90mm (D)

1- PTBS junction box 160 specification housing, 1 M40×1.5 hole at the bottom

1- PTBS-GET-S3 bracket

4- UK6N or terminals of the same specification

2- USLKG6 or grounding terminals of the same specification

HTU⁺

PTBS-GET-160P

PTBS Explosion-Proof Junction Box

Polyester Enclosure: 160mm (W) x 160mm (H) x 90mm (D)

1- PTBS Junction Box 160 Size Enclosure, 1 M40×1.5 Hole at the Bottom

1 M25×1.5 Hole on Each Left and Right Side

1- PTBS-GET-S4 Bracket

1 M25×1.5 Explosion-proof Cable Gland (Round, PA66 Material)

1 M25×1.5 Explosion-proof Blind Plug (PA66 Material)

4 UK6N or Equivalent Terminal Blocks

2 USLKG6 or Equivalent Grounding Terminals

LHTR、15HTR

PTBS-GET-160S

PTBS Explosion-Proof Junction Box

Polyester housing: 160mm (W) × 160mm (H) × 90mm (D)

1-PTBS junction box 160 specification housing, bottom with 1-M40×1.5 hole

1-PTBS-GET-S3 bracket

2-UK6N or terminals of the same specification

1-USLKG6 or grounding terminal of the same specification

LHTR、15HTR

PTBS-GET-160T

PTBS Explosion-Proof Junction Box

Polyester enclosure: 160mm (W) × 160mm (H) × 90mm (D)

1 - PTBS junction box 160 specification enclosure, with one M40×1.5 hole at the bottom

1 - PTBS-GET-S4 bracket

4 - UK6N or equivalent specification terminal blocks

2 - USLKG6 or equivalent specification grounding terminals

LHTR、15HTR

PTBS-GET-S3

PTBS Explosion-Proof Junction Box
Support Base

New integrated base (small hole)

PTBS-GET-S4

PTBS Explosion-Proof Junction Box
Support Base

New Integrated Base (Large Hole)
