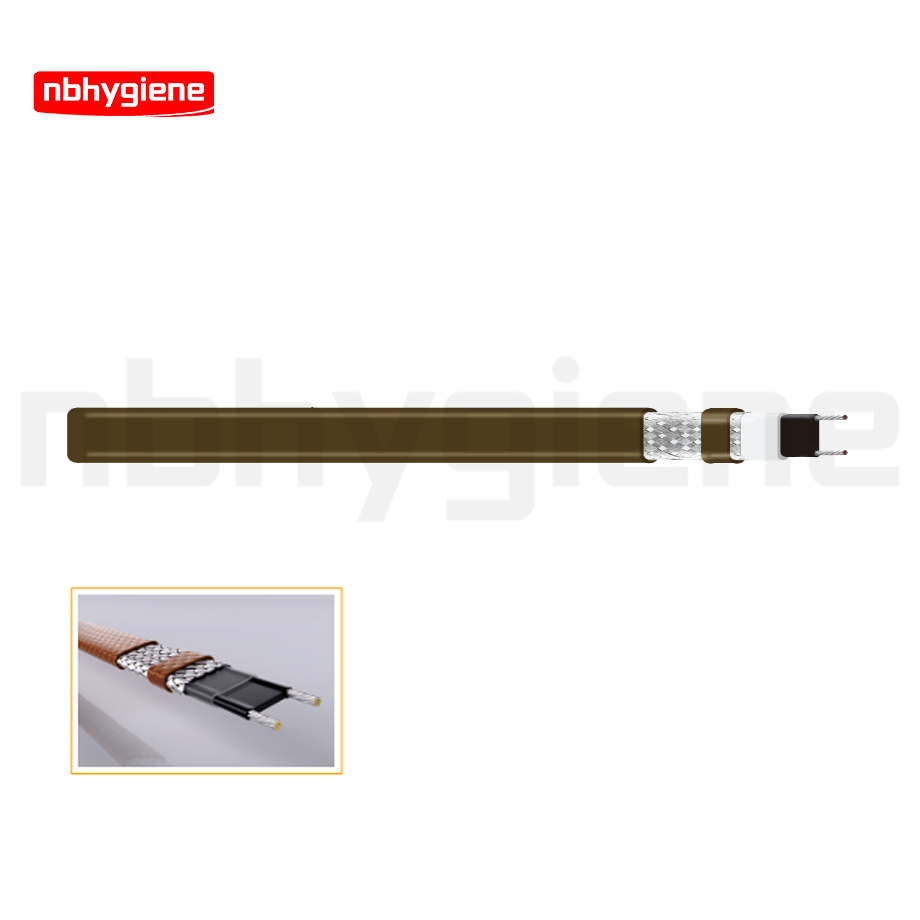

HTP Medium-temperature self-limiting electrical heating tape
面议

Product Applications:

The HTP medium-temperature self-regulating electric heat tracing tape can be used for process temperature maintenance in industrial settings where steam purging is not possible. The maximum process maintenance temperature can reach 110°C. Additionally, this product is suitable for freeze protection of large pipelines with medium maximum exposure temperatures. Regardless of whether the pipelines are installed overhead or buried, this model can maintain the temperature of the medium inside the pipeline and preserve its phase.


Technical Specifications:

Rated Voltage:
Maximum operating temperature:
Maximum exposure temperature:
Explosion-proof label:
Temperature group:
Enclosure protection rating:
Minimum installation temperature:
Minimum bending radius:
Dimensions:

110-120V (HTP 1) / 220-240V (HTP 2)
+110℃(230°F)
+135℃(275°F)
Ex eb IIC Gb , Ex tb IIIC Db
T4
IP66/67
-60℃(-76°F)
30mm
CR: 12.36mm(W)×4.76mm(T)
