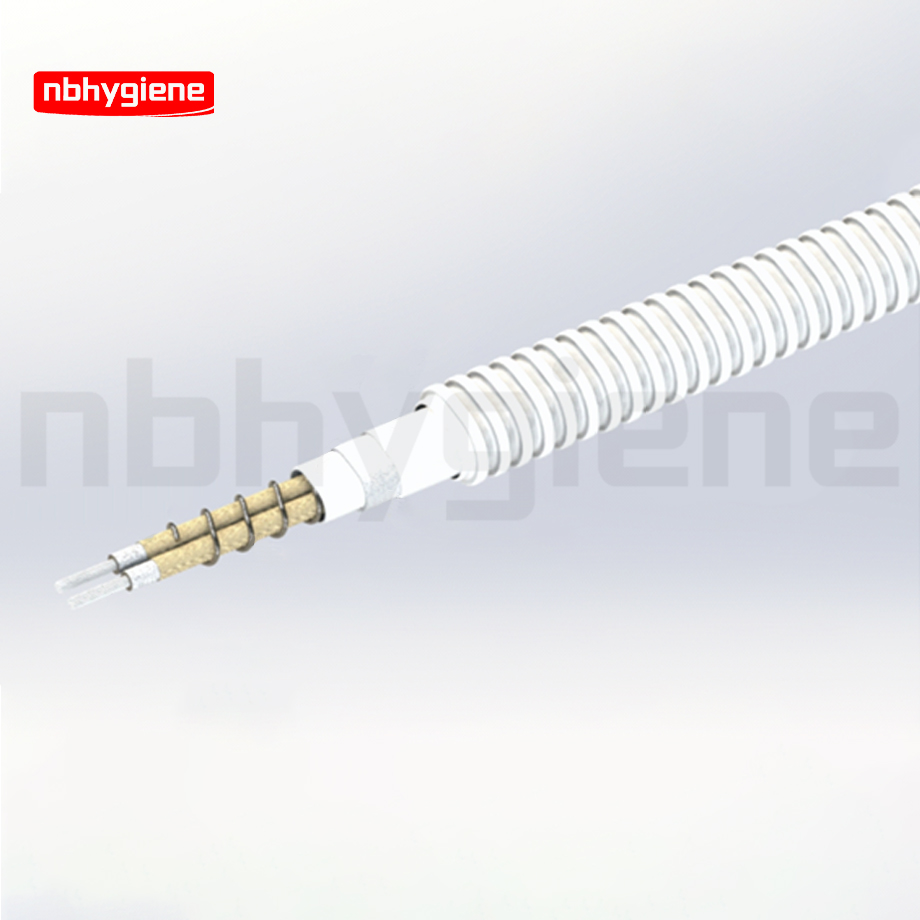

The BWG armored parallel constant power electric heating tape is widely used for heating requirements of industrial pipelines and related equipment. It is an excellent choice for applications that require both stable high power output and relatively high exposure temperature for frost protection and temperature maintenance. The BWG armored parallel constant power electric heating tape can provide an output power of up to 100 W/m and withstand temperatures of up to 450°C during steam purging or power outages. The stable heating power also ensures that the BWG electric heating tape maintains a low starting current, without causing excessive impact on the overall power system.
| Rated Voltage: Maximum Exposure Temperature: Minimum Installation Temperature: Explosion-Proof Marking: Minimum Bending Radius: Dimensions: Maximum Sustained Temperature: | 220V/380V +450°℃ (842°F) -60℃(-76°F) Ex eb ⅡIC Gb, Ex tb ⅢC Db 25mm 15.5mm(W)×12.3mm(T) 380°℃ |
Specifications：
Ref No. | Voltage 220V Output Power (W/m) | Maximum usage length (m)
| Maintain temperature (℃)
| Maximum Exposure Temperature (℃)
| Node color (a section of color) |
20BWG2 40BWG2 60BWG2 80BWG2 100BWG2 | 20 40 60 80 100 | 170 100 65 50 40 | 380 340 300 270 230 | 450 450 450 450 450 | Green Brown Black Yellow Red |
Ref No. | Voltage 380V Output Power (W/m) | Maximum usage length (m)
| Maintain temperature (℃)
| Maximum Exposure Temperature (℃)
| Node color (a section of color) |
20BWG3 40BWG3 60BWG3 80BWG3 100BWG3 | 20 40 60 80 100 | 270 140 115 80 62 | 380 340 300 270 230 | 450 450 450 450 450 | Green-Green Brown-Brown Black-Black Yellow-Yellow Red-Red |
