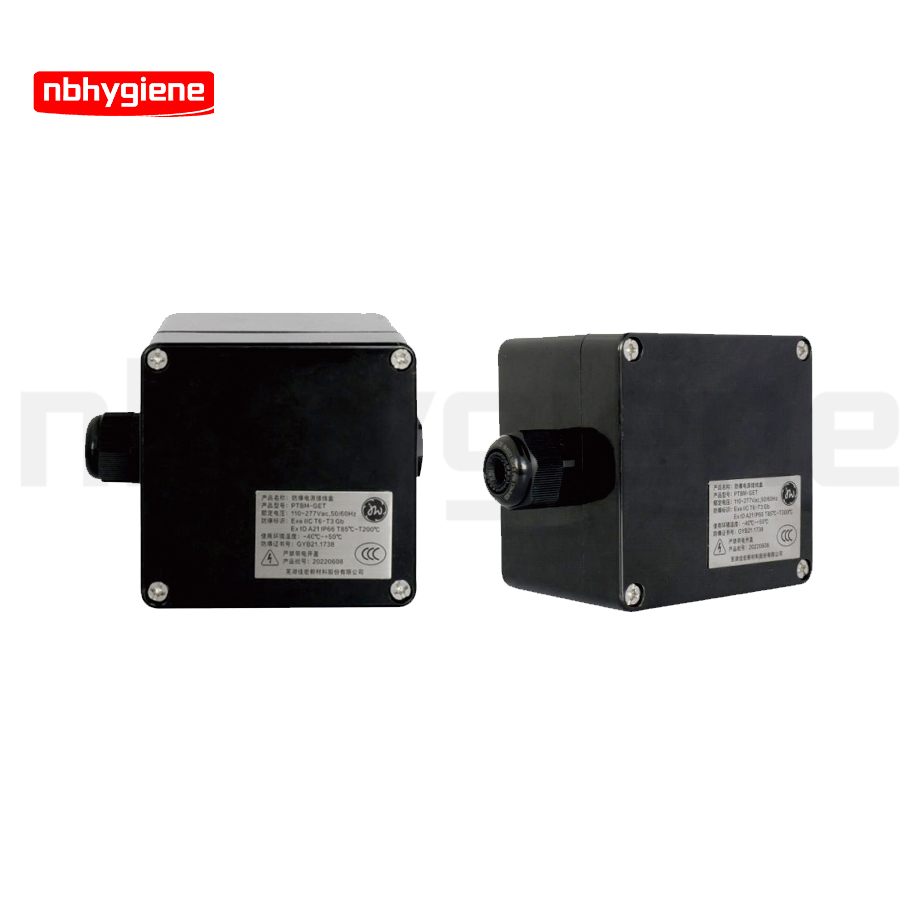

| Ref No.:
| PTBM-GET-120 |
| Composition:
| 1 junction box with a terminal
|
| Applicable Heating Cable:
| HTLe 、 HTR 、 HTP 、 HTS 、HTU⁺
、 ESF、FCW、MSF |
| Protection level:
| IP 66 |
| Ambient temperature range:
| - 60℃~+60℃ |
| Minimum installation temperature:
| - 60℃ |
| Explosion-proof mark:
| Ex eb ⅡC Gb,Ex tb ⅢC Db |
| Rated voltage:
| 110~277Vac 380Vac/660Vac 50/60HZ |
| Shell, cover, and bracket:
| BMC unsaturated polyester
|
| Lid screws:
| Stainless steel
|
| Ref No.
| Product Name
| Product Description
| Applicable line type
|
| PTBM-GET-120A | PTBM Explosion-Proof Junction Box
| Polyester housing: 120mm (width) × 122mm (height) × 90mm (depth) 1-PTBM junction box 120 specification housing, two M25×1.5 holes at the bottom One M25×1.5 hole on each of the left and right sides 1-M25×1.5 explosion-proof cable gland (PA66 material) 2-M25×1.5 explosion-proof blank plugs (PA66 material) 1-M25×1.5 explosion-proof cable gland for outgoing line (flat opening, PA66 material) 4-UK6N or same specification terminals 2-USLKG6 or same specification grounding terminals | HTR、HTP、HTS HTU⁺ 、FCW |
| PTBM-GET-120B | PTBM Explosion-Proof Junction Box
| Polyester Enclosure: 120mm (W) x 122mm (H) x 90mm (D) 1-PTBM junction box size 120 enclosure, bottom with 2-M25×1.5 holes Right side with 1-M25×1.5 hole 1-M25x1.5 cable entry explosion-proof gland (round, PA66 material) 2-UK6N or same specification terminals 2-USLKG6 or same specification grounding terminals | MSF-1 |
| PTBM-GET-120C | PTBM Explosion-Proof Junction Box
| Polyester Enclosure: 120mm (W) x 122mm (H) x 90mm (D) 1-PTBM junction box with 120 specification enclosure, 1-M25×1.5 hole on the bottom 1-M25×1.5 hole on the right side 1-M25×1.5 cable entry explosion-proof gland (round, PA66 material) 2-UK6N or terminals of the same specification 1-USLKG6 or grounding terminal of the same specification | MSF-2 |
| PTBM-GET-120D | PTBM Explosion-Proof Junction Box
| Polyester housing: 120mm (W) x 122mm (H) x 90mm (D) 1-PTBM junction box with 120 specification housing, bottom with 2-M20×1.5 holes Right side with 1-M25×1.5 hole 1-M25×1.5 cable entry explosion-proof gland (round, PA66 material) 2-M20×1.5 cable exit explosion-proof glands (round, PA66 material) 2-UK6N or same specification terminal blocks 2-USLKG6 or same specification grounding terminals | 1ESF. 2ESF |
| PET-JBM120A | Install backplate (galvanized iron)
| Galvanized iron material
| PTBM-GET-120 |
| PET-JBM120B | Install backplate (304 stainless steel) | 304 stainless steel material
| PTBM-GET-120 |
